Multiple connections - HASP issues

Published November 11th, 2015 by Vitaliy Mokosiy, Atola Technology Inc.

DiskSense hardware system includes an internal HASP USB dongle.
It contains unique activation and subscription information.

Having more than one DiskSense system in your network may result in HASP-related conflicts. These conflicts usually manifest
as “Too many connections” or “Cannot located DiskSense unit” errors. The issue is caused by behavior of the HASP discovery
system which by default picks a random HASP dongle on the network. In other words, one Atola Insight Forensic instance may
establish the connection with one DiskSense system, however it will “use” the HASP dongle of another (random) system
available on the network.

How to resolve multiple HASP connection issues

We would like to share the solution with you. HASP discovery system offers a web administration tool where one can
easily set up IP filter specifying HASP dongle search locations.

1. Access the URL with your browser: http://localhost:1947
2. Click ‘Configuration’ link in the left side menu
3. Click ‘Access to Remote License Managers’ tab
4. Untick ‘Broadcast Search for Remote Licenses’ checkbox
5. Enter specific DiskSense IP you want to be connected to
6. Click ‘Submit’

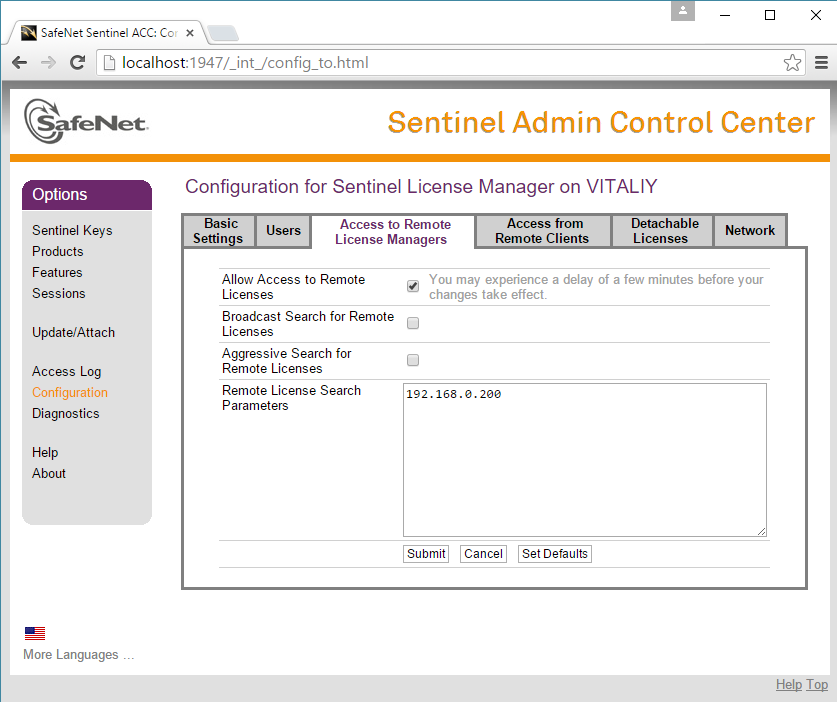

After you perform the actions, the final screen should look like like this:

Note: The IP address 192.168.0.200 in the following picture is used only as an example.
